TC74VHC374FT - OCTAL D-TYPE FLIP-FLOP WITH 3-STATE OUTPUT

Name: TC74VHC374FT
SKU: TC74VHC374FT-376169

Toshiba

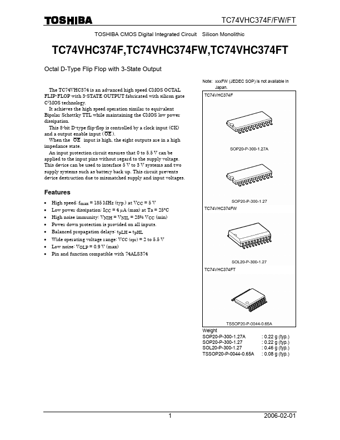

The TC74VHC374FT by Toshiba is a OCTAL D-TYPE FLIP-FLOP WITH 3-STATE OUTPUT. Below is the official datasheet preview.

Datasheet Details

Part number	TC74VHC374FT
Manufacturer	Toshiba
File Size	365.61 KB
Description	OCTAL D-TYPE FLIP-FLOP WITH 3-STATE OUTPUT
Datasheet	TC74VHC374FT_ToshibaSemiconductor.pdf
Additional preview pages of the TC74VHC374FT datasheet.

High speed: fmax = 185 MHz (typ. ) at VCC = 5 V.
Low power dissipation: ICC = 4 µA (max) at Ta = 25°C.
High noise immunity: VNIH = VNIL = 28% VCC (min).
Power down protection is provided on all inputs.
Balanced propagation delays: tpLH ∼.
tpHL.
Wide operating voltage range: VCC (opr) = 2 to 5.5 V.
Low noise: VOLP = 0.9 V (max).
Pin and function compatible with 74ALS374 Note: xxxFW (JEDEC SOP) is not available in Ja.
