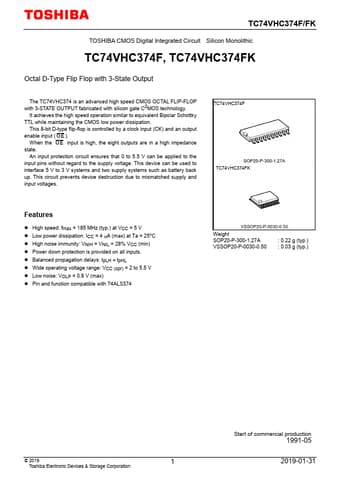

TC74VHC374F - Octal D-Type Flip-Flop

Toshiba

Datasheet Details

High speed: fmax = 185 MHz (typ. ) at VCC = 5 V.
Low power dissipation: ICC = 4 µA (max) at Ta = 25°C.
High noise immunity: VNIH = VNIL = 28% VCC (min).
Power down protection is provided on all inputs.
Balanced propagation delays: tpLH ∼.
tpHL.
Wide operating voltage range: VCC (opr) = 2 to 5.5 V.
Low noise: VOLP = 0.8 V (max).
Pin and function compatible with 74ALS374 Weight SOP20-P-300-1.27A VSSOP20-P-0030-0.50 : 0.22 g (typ. ) : 0.03 g (typ. ).
