TK5A60W5 Datasheet - Toshiba

TK5A60W5 N-Channel MOSFET

TK5A60W5 Features

* (1) Fast reverse recovery time: trr = 65 ns (typ.) (2) Low drain-source on-resistance: RDS(ON) = 0.8 Ω (typ.) by using Super Junction Structure : DTMOS (3) Easy to control Gate switching (4) Enhancement mode: Vth = 3 to 4.5 V (VDS = 10 V, ID = 0.23 mA) 3. Packaging and Internal Circuit TK5A60W5 TO

TK5A60W5-Toshiba.pdf

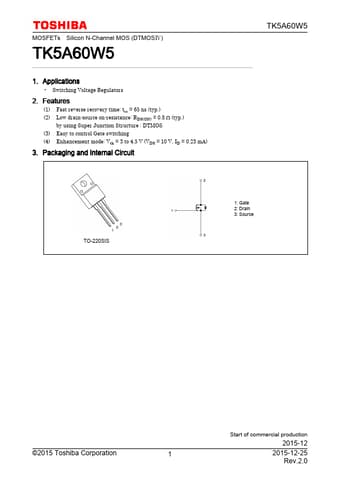

Preview of TK5A60W5 PDF
TK5A60W5 Datasheet Preview Page 2 TK5A60W5 Datasheet Preview Page 3

Datasheet Details

Part number:

TK5A60W5

Manufacturer:

Toshiba ↗

File Size:

536.03 KB

Description:

N-channel mosfet.
