TSP4N60M N-Channel MOSFET

TSP4N60M Description

TSP4N60M/TSF4N60M TSP4N60M/TSF4N60M 600V N-Channel MOSFET General .
This Power MOSFET is produced using Truesemi‘s advanced planar stripe DMOS technology.

TSP4N60M Features

* 4.0A,600V,Max. RDS(on)=2.5 Ω @ VGS =10V
* Low gate charge(typical 16nC)
* High ruggedness
* Fast switching
* 100% avalanche tested
* Improved dv/dt capability Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol VDSS VGS ID IDM EAS EAR

📥 Download Datasheet

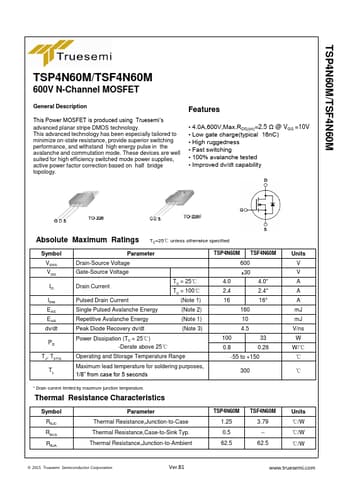

Preview of TSP4N60M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TSP4N60M
Manufacturer
Truesemi
File Size
669.92 KB
Datasheet
TSP4N60M-Truesemi.pdf
Description
N-Channel MOSFET
