AM55-0004 Datasheet - Tyco Electronics

AM55-0004 250 mW Linear Power Amplifier and T/R Switch 1.8 - 2.0 GHz

M/A-COM’s AM55-0004 power ampliﬁer/switch integrates a power ampliﬁer and transmit/receive switch in a low cost SSOP package. The power ampliﬁer delivers +24 dBm of linear power with high efﬁciency and can be operated at supply voltages as low as 2.7 V. It is ideally suited for QPSK or other linearl.

AM55-0004 Features

* q q q q q q SSOP-28 +.0025 .0275 -.0025 0,7 +0,06 -0,06 +.0034 .1540 -.0043 .236 ±.008 +0,09 5,99 ± 0,2 3,91 -0,11 +.0037 .3900 -.0041 +0,09 9,91 -0,1 Operates Over Full PCN/PCS/PHS Bands Operates Over +3 V to +5 V Supply Voltage +24 dBm P1dB Typical at PA Out 35% PAE @ P1dB for Linear Operation O

AM55-0004_TycoElectronics.pdf

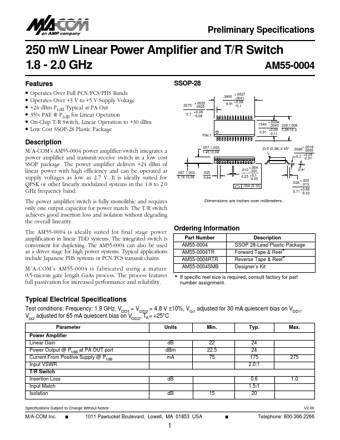

AM55-0004 Datasheet Preview — Preview of AM55-0004 PDF

Datasheet Details

Part number:

AM55-0004

Manufacturer:

Tyco Electronics

File Size:

338.56 KB

Description:

250 mw linear power amplifier and t/r switch 1.8 - 2.0 ghz.
