AM55-0004RTR - 250 mW Linear Power Amplifier and T/R Switch 1.8 - 2.0 GHz

Tyco Electronics

Datasheet Details

Part number	AM55-0004RTR
Manufacturer	Tyco Electronics
File Size	338.56 KB
Description	250 mW Linear Power Amplifier and T/R Switch 1.8 - 2.0 GHz

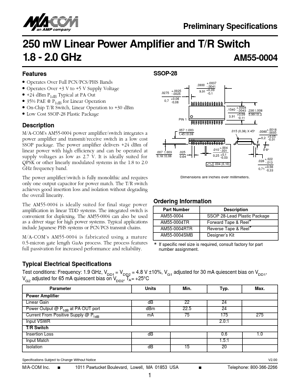

Datasheet	AM55-0004RTR_TycoElectronics.pdf

M/A-COM’s AM55-0004 power ampliﬁer/switch integrates a power ampliﬁer and transmit/receive switch in a low cost SSOP package.

q q q q q q SSOP-28 +.0025 .0275 -.0025 0,7 +0,06 -0,06 +.0034 .1540 -.0043 .236 ±.008 +0,09 5,99 ± 0,2 3,91 -0,11 +.0037 .3900 -.0041 +0,09 9,91 -0,1 Operates Over Full PCN/PCS/PHS Bands Operates Over +3 V to +5 V Supply Voltage +24 dBm P1dB Typical at PA Out 35% PAE @ P1dB for Linear Operation On-Chip T/R Switch, Linear Operation to +30 dBm Low Cost SSOP-28 Plastic Package PIN 1.
