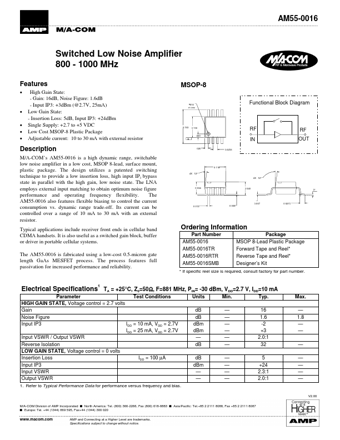

AM55-0016 Datasheet, Mhz, Tyco Electronics

✔ AM55-0016 Features

MSOP-8 R 010 ID PIN
High Gain State: - Gain: 16dB, Noise Figure: 1.6dB - Input IP3: +3dBm (@2.7V, 25mA) Low Gain State: - Insertion Loss: 5dB, Input IP3: +24

✔ AM55-0016 Application

include receiver front ends in cellular band CDMA handsets. It is also useful as a switched gain block, buff

PDF File Details

Tyco Electronics manufacturer logo

Part number:

AM55-0016

Manufacturer:

Tyco Electronics

File Size:

92.94kb

Download:

📄 Datasheet

Description:

Switched low noise amplifier 800 - 1000 mhz. M/A-COM’s AM55-0016 is a high dynamic range, switchable low noise amplifier in a low cost, MSOP 8-lead, surface mount, plastic packag

📥 Download PDF (92.94kb)
