AM55-0023SMB

Variable Voltage Gain Control Amplifier 0.8 - 2.0 GHz

AM55-0023SMB Features

* Highly Integrated Variable Voltage Gain Control Amplifier Operates with 3.0 V to 5 V Supply Voltage Greater than 40 dB dynamic range High Output P1dB: +17 dBm @ 3 V, 19 dBm @ 5V Low Cost 5 mm FQFP-N Package Functional Block Diagram RF In RF Out D

AM55-0023SMB General Description

M/A-COM’s AM55-0023 is a high performance, voltage controlled, variable gain amplifier. It has been designed for use in a broad range of applications including cellular base stations and mobile radio where AGC is required to increase system dynamic range. The gain control operates best in the 900 MH.

AM55-0023SMB Datasheet (230.23 KB)

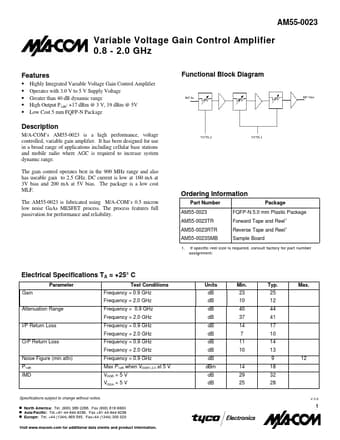

Preview of AM55-0023SMB PDF

Datasheet Details

Part number:

AM55-0023SMB

Manufacturer:

Tyco Electronics

File Size:

230.23 KB

Description:

Variable voltage gain control amplifier 0.8 - 2.0 ghz.
