AM55-0023TR, Variable Voltage Gain Control Amplifier 0.8 - 2.0 GHz

AM55-0023 Variable Voltage Gain Control Amplifier 0.8 - 2.0 GHz .
M/A-COM’s AM55-0023 is a high performance, voltage controlled, variable gain amplifier.

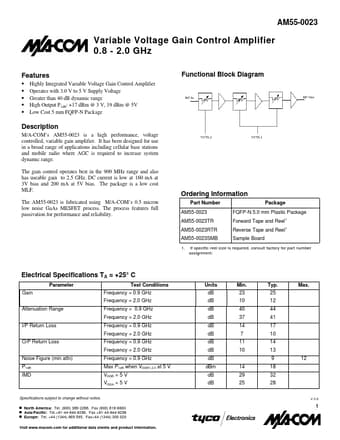

datasheet Preview Page 1 from Datasheet4u.com

AM55-0023TR_TycoElectronics.pdf

AM55-0023TR Datasheet Preview — Preview of AM55-0023TR PDF

Datasheet Details

Part number:

AM55-0023TR

Manufacturer:

Tyco Electronics

File Size:

230.23 KB

Description:

Variable Voltage Gain Control Amplifier 0.8 - 2.0 GHz

Features

* Highly Integrated Variable Voltage Gain Control Amplifier Operates with 3.0 V to 5 V Supply Voltage Greater than 40 dB dynamic range High Output P1dB: +17 dBm @ 3 V, 19 dBm @ 5V Low Cost 5 mm FQFP-N Package Functional Block Diagram RF In RF Out D

Applications

* including cellular base stations and mobile radio where AGC is required to increase system dynamic range. The gain control operates best in the 900 MHz range and also has useable gain to 2.5 GHz. DC current is low at 160 mA at 3V bias and 200 mA at 5V bias. The package is a low cost MLF. The AM55-00
