Datasheet Details
- Part number
- AM55-0024
- Manufacturer
- Tyco Electronics
- File Size
- 393.19 KB
- Datasheet
- AM55-0024_TycoElectronics.pdf
- Description
- Hi Dyn Range 2 Channel IF Amp with Power Control/ 100 - 400 MHz

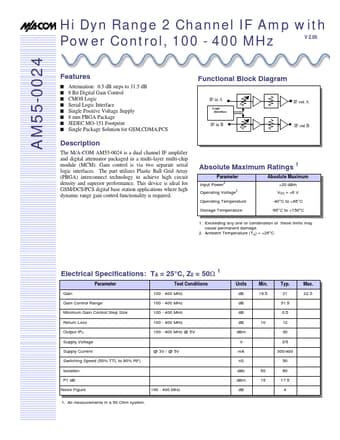

AM55-0024 Description
Hi Dyn Range 2 Channel IF Amp with Power Control, 100 - 400 MHz V 2.00 AM55-0024 .
The M/A-COM AM55-0024 is a dual channel IF amplifier and digital attenuator packaged in a multi-layer multi-chip module (MCM).
AM55-0024 Features
* n n n n n n n n
Functional Block Diagram
IF in A
Logic Interface
Attenuation: 0.5 dB steps to 31.5 dB 6 Bit Digital Gain Control CMOS Logic Serial Logic Interface Single Positive Voltage Supply 8 mm PBGA Package JEDEC MO-151 Footprint Single Package Solution for GSM,CDMA,PCS
IF out A
IF in B
IF
AM55-0024 Applications
* where high dynamic range gain control functionality is required. Absolute Maximum Ratings 1
Parameter Input Power2 Operating Voltage
2
Absolute Maximum +20 dBm VDD = +6 V -40°C to +85°C -65°C to +150°C
Operating Temperature Storage Temperature
1. Exceeding any one or combination of these limits
