AM55-0024TR

Hi Dyn Range 2 Channel IF Amp with Power Control/ 100 - 400 MHz

AM55-0024TR Features

* n n n n n n n n Functional Block Diagram IF in A Logic Interface Attenuation: 0.5 dB steps to 31.5 dB 6 Bit Digital Gain Control CMOS Logic Serial Logic Interface Single Positive Voltage Supply 8 mm PBGA Package JEDEC MO-151 Footprint Single Package Solution for GSM,CDMA,PCS IF out A IF in B IF

AM55-0024TR General Description

The M/A-COM AM55-0024 is a dual channel IF amplifier and digital attenuator packaged in a multi-layer multi-chip module (MCM). Gain control is via two separate serial logic interfaces. The part utilizes Plastic Ball Grid Array (PBGA) interconnect technology to achieve high circuit density and superi.

AM55-0024TR Datasheet (393.19 KB)

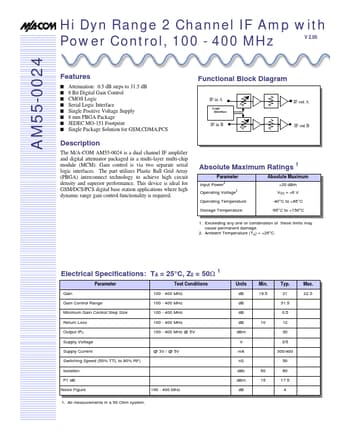

Preview of AM55-0024TR PDF

Datasheet Details

Part number:

AM55-0024TR

Manufacturer:

Tyco Electronics

File Size:

393.19 KB

Description:

Hi dyn range 2 channel if amp with power control/ 100 - 400 mhz.
