MASW-008177 - SPST High Isolation CATV Switch

Description

M/A-COM’s MASW-008177 is a GaAs PHEMT MMIC single pole single throw (SPST) switch in a low cost 3 mm 12-lead PQFN package.

The MASW-008177 is ideally suited for applications where low control voltage, low insertion loss, high isolation, small size and low cost are required.

Features

  • 75 Ohm Impedance Positive Voltage Control (0 / +5 V) Input Terminated (Off State) Low Insertion Loss: 0.62 dB at 870 MHz High Isolation: 54 dB at 870 MHz 0.5 micron GaAs PHEMT Process Lead-Free 3 mm 12-Lead PQFN Package 100% Matte Tin Plating over Copper Halogen-Free “Green” Mold Compound 260°C Reflow Compatible RoHS.
  • Compliant Version of MASWSS0067.

📥 Download Datasheet

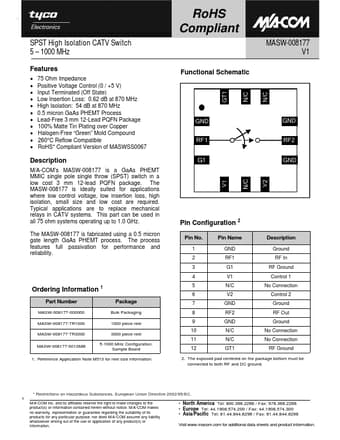

Datasheet preview – MASW-008177

Datasheet Details

Part number MASW-008177
Manufacturer Tyco Electronics
File Size 143.46 KB
Description SPST High Isolation CATV Switch
Datasheet download datasheet MASW-008177 Datasheet
Additional preview pages of the MASW-008177 datasheet.

📁 Similar Datasheet

Other Datasheets by Tyco Electronics

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com RoHS Compliant MASW-008177 V1 Functional Schematic SPST High Isolation CATV Switch 5 – 1000 MHz Features • • • • • • • • • • • 75 Ohm Impedance Positive Voltage Control (0 / +5 V) Input Terminated (Off State) Low Insertion Loss: 0.62 dB at 870 MHz High Isolation: 54 dB at 870 MHz 0.5 micron GaAs PHEMT Process Lead-Free 3 mm 12-Lead PQFN Package 100% Matte Tin Plating over Copper Halogen-Free “Green” Mold Compound 260°C Reflow Compatible RoHS* Compliant Version of MASWSS0067 Description M/A-COM’s MASW-008177 is a GaAs PHEMT MMIC single pole single throw (SPST) switch in a low cost 3 mm 12-lead PQFN package. The MASW-008177 is ideally suited for applications where low control voltage, low insertion loss, high isolation, small size and low cost are required.
