MASW-008206-000DIE - GaAs WLAN Dual SPDT Switch

This page provides the datasheet information for the MASW-008206-000DIE, a member of the MASW-008206-000DIE-MA GaAs WLAN Dual SPDT Switch family.

Description

The MASW-008206-000DIE is a WLAN GaAs pHEMT MMIC Dual SPDT switch.

One SPDT (RF2) is optimized for 2.4 GHz WLAN and the other (RF5) is optimized for 5.8 GHz WLAN applications.

Typical applications are for 802.11a and 802.11b/g PC card and access point applications.

Features

  •  802.11a & b/g, UNII, and Hiperlan.

📥 Download Datasheet

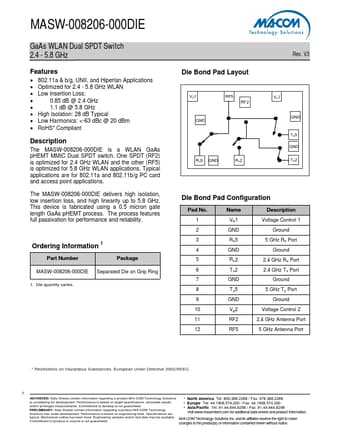

Datasheet preview – MASW-008206-000DIE

Datasheet Details

Part number MASW-008206-000DIE
Manufacturer MA-COM
File Size 84.94 KB
Description GaAs WLAN Dual SPDT Switch
Datasheet download datasheet MASW-008206-000DIE Datasheet
Additional preview pages of the MASW-008206-000DIE datasheet.

📁 Similar Datasheet

  • MASW-008075 - GaAs SPDT Switch (Tyco Electronics)
  • MASW-008177 - SPST High Isolation CATV Switch (Tyco Electronics)
  • MASW-008330 - GaAs SP3T 2.5 V Switch (Tyco Electronics)
  • MASW-008566 - GaAs SP4T 2.5 V High Power Switch (Tyco Electronics)
  • MASW-008801 - SPDT High Isolation CATV and Satellite Communications Switch 5 (Tyco Electronics)
  • MASW-000105 - GaAs SP6T 2.5 V High Power Switch (M/A-COM Technology)
  • MASW-000105 - GaAs SP6T 2.5V High Power Switch Dual- / Tri- / Quad-Band GSM Applications (MA-COM Technology)
  • MASW-000822 - PIN Diode SP2T 10W Switch (MACOM)
  • MASW-000822-12770T - HMICTM PIN Diode SP2T 8 Watt Switch (Tyco Electronics)
  • MASW-000823-12770T - PIN Diode SP2T 13Watt Switch (MACOM)
Other Datasheets by MA-COM

Full PDF Text Transcription

Click to expand full text
MASW-008206-000DIE GaAs WLAN Dual SPDT Switch 2.4 - 5.8 GHz Features  802.11a & b/g, UNII, and Hiperlan Applications  Optimized for 2.4 - 5.8 GHz WLAN  Low Insertion Loss:  0.85 dB @ 2.4 GHz  1.1 dB @ 5.8 GHz  High Isolation: 28 dB Typical  Low Harmonics: <-63 dBc @ 20 dBm  RoHS* Compliant Description The MASW-008206-000DIE is a WLAN GaAs pHEMT MMIC Dual SPDT switch. One SPDT (RF2) is optimized for 2.4 GHz WLAN and the other (RF5) is optimized for 5.8 GHz WLAN applications. Typical applications are for 802.11a and 802.11b/g PC card and access point applications. The MASW-008206-000DIE delivers high isolation, low insertion loss, and high linearity up to 5.8 GHz. This device is fabricated using a 0.5 micron gate length GaAs pHEMT process.
