MASW-008330 Datasheet, Switch, Tyco Electronics

MASW-008330 Features

• Switch
• Low Voltage Operation: 2.5V Low Insertion Loss: 0.3 dB at 1 GHz 0.5 micron GaAs PHEMT Process Lead-Free 2

PDF File Details

Part number:

MASW-008330

Manufacturer:

Tyco Electronics

File Size:

163.04kb

Download:

📄 Datasheet

Description:

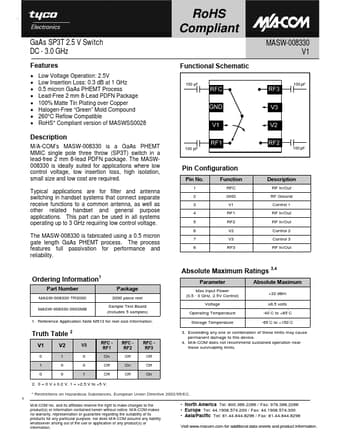

Gaas sp3t 2.5 v switch. M/A-COM’s MASW-008330 is a GaAs PHEMT MMIC single pole three throw (SP3T) switch in a lead-free 2 mm 8-lead PDFN package. The MASW008

MASW-008330 Application

• Applications where low control voltage, low insertion loss, high isolation, small size and low cost are required. Typical applications are for filte
