MASW-008801 Datasheet PDF (SPDT High Isolation CATV and Satellite Communications Switch 5)

MASW-008801 - SPDT High Isolation CATV and Satellite Communications Switch 5

Description

The MASW-008801 is a GaAs pHEMT MMIC single pole double throw (SPDT) switch in a lead-free 3 mm 16-lead PQFN package.

The MASW-008801 is ideally suited for applications where low control voltage, high isolation, small size and low cost are required.

Features

75 Ω Impedance.
Input Terminated.
Positive Voltage Control.
High Isolation: 50 dB at 2500 MHz.
0.5 micron GaAs pHEMT Process.
Achieve 80 dB isolation at 216 MHz.
Lead-Free 3 mm 16-Lead PQFN Package.
100% Matte Tin Plating over Copper www. DataSheet4U. com.
Halogen-Free “Green” Mold Compound.
RoHS.
Compliant and 260°C Reflow Compatible M/A-COM Products Rev. V1 Functional Schematic.

Datasheet Details

Part number	MASW-008801
Manufacturer	Tyco Electronics
File Size	237.03 KB
Description	SPDT High Isolation CATV and Satellite Communications Switch 5
Datasheet	MASW-008801 Datasheet

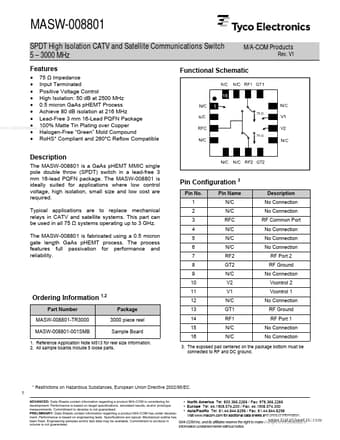

Additional preview pages of the MASW-008801 datasheet.

📁 Similar Datasheet

MASW-008801 - SPDT High Isolation CATV and Satellite Communications Switch (MA-COM)

MASW-008853 - GaAs SPDT 2.7 V High Power Switch (MA-COM)

MASW-008899 - GaAs SPDT Switch (MA-COM)

MASW-008206-000DIE - GaAs WLAN Dual SPDT Switch (MA-COM)

MASW-008322 - GaAs SPDT Switch (MA-COM)

MASW-008330 - GaAs SP3T 2.5 V Switch (MA-COM)

MASW-008330-001SMB - GaAs SP3T 2.5 V Switch (MA-COM)

MASW-008330-TR3000 - GaAs SP3T 2.5 V Switch (MA-COM)

MASW-008543 - SPDT High Isolation Terminated Switch (MA-COM)

Full PDF Text Transcription

Click to expand full text

MASW-008801 SPDT High Isolation CATV and Satellite Communications Switch 5 – 3000 MHz Features • 75 Ω Impedance • Input Terminated • Positive Voltage Control • High Isolation: 50 dB at 2500 MHz • 0.5 micron GaAs pHEMT Process • Achieve 80 dB isolation at 216 MHz • Lead-Free 3 mm 16-Lead PQFN Package • 100% Matte Tin Plating over Copper www.DataSheet4U.com • Halogen-Free “Green” Mold Compound • RoHS* Compliant and 260°C Reflow Compatible M/A-COM Products Rev. V1 Functional Schematic Description The MASW-008801 is a GaAs pHEMT MMIC single pole double throw (SPDT) switch in a lead-free 3 mm 16-lead PQFN package. The MASW-008801 is ideally suited for applications where low control voltage, high isolation, small size and low cost are required.
