MASW-008853 - GaAs SPDT 2.7 V High Power Switch

This page provides the datasheet information for the MASW-008853, a member of the MASW-008853MA GaAs SPDT 2.7 V High Power Switch family.

Description

M/A-COM’s MASW-008853 is a GaAs PHEMT MMIC single pole double throw (SPDT) high power switch in a low cost SC70 six lead package.

The MASW-008853 is ideally suited for applications where high power, low control voltage, low insertion loss, high isolation, small size, and low cost are required.

Features

  • Low Voltage Operation: 2.7 V.
  • High Power: +38dBm (typ) P0.1dB.
  • High IP3: +56 dBm.
  • Low Insertion Loss: 0.25 dB @ 1 GHz.
  • High Isolation: 25 dB @ 1 GHz.
  • Lead-Free SC70 Package.
  • 100% Matte Tin Plating over Copper.
  • Halogen-Free ―Green‖ Mold Compound.
  • RoHS.
  • Compliant and 260°C Reflow Compatible.

📥 Download Datasheet

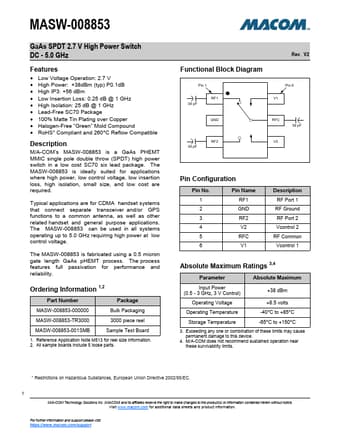

Datasheet preview – MASW-008853
