MASW-008330-TR3000 - GaAs SP3T 2.5 V Switch

This page provides the datasheet information for the MASW-008330-TR3000, a member of the MASW-008330-MA GaAs SP3T 2.5 V Switch family.

Description

M/A-COM’s MASW-008330 is a GaAs PHEMT MMIC single pole three throw (SP3T) switch in a lead-free 2 mm 8-lead PDFN package.

The MASW008330 is ideally suited for applications where low control voltage, low insertion loss, high isolation, small size and low cost are required.

Features

  • Low Voltage Operation: 2.5V.
  • Low Insertion Loss: 0.3 dB at 1 GHz.
  • 0.5 micron GaAs PHEMT Process.
  • Lead-Free 2 mm 8-Lead PDFN Package.
  • 100% Matte Tin Plating over Copper.
  • Halogen-Free ―Green‖ Mold Compound.
  • 260°C Reflow Compatible.
  • RoHS.
  • Compliant version of MASWSS0028 Functional Schematic 100 pF RFC GND V1 Rev. V1 RF3 100 pF V3 V2.

📥 Download Datasheet

Datasheet preview – MASW-008330-TR3000

Datasheet Details

Part number MASW-008330-TR3000
Manufacturer MA-COM
File Size 580.79 KB
Description GaAs SP3T 2.5 V Switch
Datasheet download datasheet MASW-008330-TR3000 Datasheet
Additional preview pages of the MASW-008330-TR3000 datasheet.

📁 Similar Datasheet

  • MASW-008330 - GaAs SP3T 2.5 V Switch (Tyco Electronics)
  • MASW-008075 - GaAs SPDT Switch (Tyco Electronics)
  • MASW-008177 - SPST High Isolation CATV Switch (Tyco Electronics)
  • MASW-008566 - GaAs SP4T 2.5 V High Power Switch (Tyco Electronics)
  • MASW-008801 - SPDT High Isolation CATV and Satellite Communications Switch 5 (Tyco Electronics)
  • MASW-000105 - GaAs SP6T 2.5 V High Power Switch (M/A-COM Technology)
  • MASW-000105 - GaAs SP6T 2.5V High Power Switch Dual- / Tri- / Quad-Band GSM Applications (MA-COM Technology)
  • MASW-000822 - PIN Diode SP2T 10W Switch (MACOM)
  • MASW-000822-12770T - HMICTM PIN Diode SP2T 8 Watt Switch (Tyco Electronics)
  • MASW-000823-12770T - PIN Diode SP2T 13Watt Switch (MACOM)
Other Datasheets by MA-COM

Full PDF Text Transcription

Click to expand full text

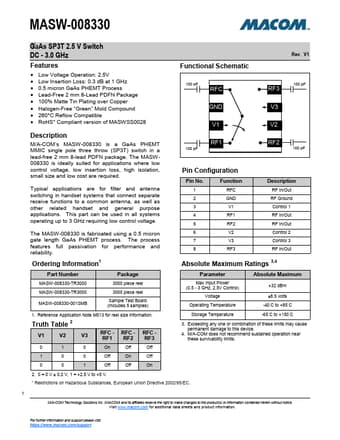

MASW-008330 GVaAs SP3T 2.5 V Switch DC - 3.0 GHz Features  Low Voltage Operation: 2.5V  Low Insertion Loss: 0.3 dB at 1 GHz  0.5 micron GaAs PHEMT Process  Lead-Free 2 mm 8-Lead PDFN Package  100% Matte Tin Plating over Copper  Halogen-Free ―Green‖ Mold Compound  260°C Reflow Compatible  RoHS* Compliant version of MASWSS0028 Functional Schematic 100 pF RFC GND V1 Rev. V1 RF3 100 pF V3 V2 Description M/A-COM’s MASW-008330 is a GaAs PHEMT MMIC single pole three throw (SP3T) switch in a lead-free 2 mm 8-lead PDFN package. The MASW008330 is ideally suited for applications where low control voltage, low insertion loss, high isolation, small size and low cost are required.
