MASW-008075, GaAs SPDT Switch

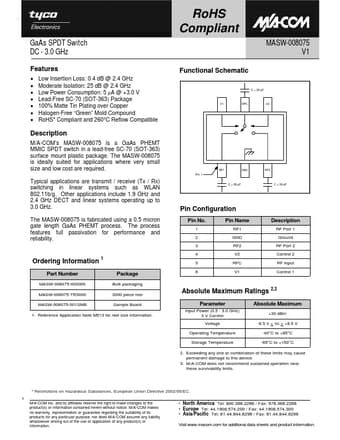

www.DataSheet4U.com RoHS Compliant MASW-008075 V1 Functional Schematic C = 39 pF GaAs SPDT Switch DC - 3.0 GHz .
M/A-COM’s MASW-008075 is a GaAs PHEMT MMIC SPDT switch in a lead-free SC-70 (SOT-363) surface mount plastic package.

Features

* Low Insertion Loss: 0.4 dB @ 2.4 GHz Moderate Isolation: 25 dB @ 2.4 GHz Low Power Consumption: 5 μA @ +3.0 V Lead-Free SC-70 (SOT-363) Package 100% Matte Tin Plating over Copper Halogen-Free “Green” Mold Compound RoHS
* Compli

Applications

* where very small size and low cost are required. Pin 1 RF1 GND RF2 Typical applications are transmit / receive (Tx / Rx) switching in linear systems such as WLAN 802.11b/g. Other applications include 1.9 GHz and 2.4 GHz DECT and linear systems operating up to 3.0 GHz. The MASW-008075 is fabricat
