QM2422M3 - N-Channel 20V Fast Switching MOSFET

Product Overview

UBIQ

Datasheet Details

Part number	QM2422M3
Manufacturer	UBIQ
File Size	550.03 KB
Description	N-Channel 20V Fast Switching MOSFET
Datasheet	QM2422M3 Datasheet

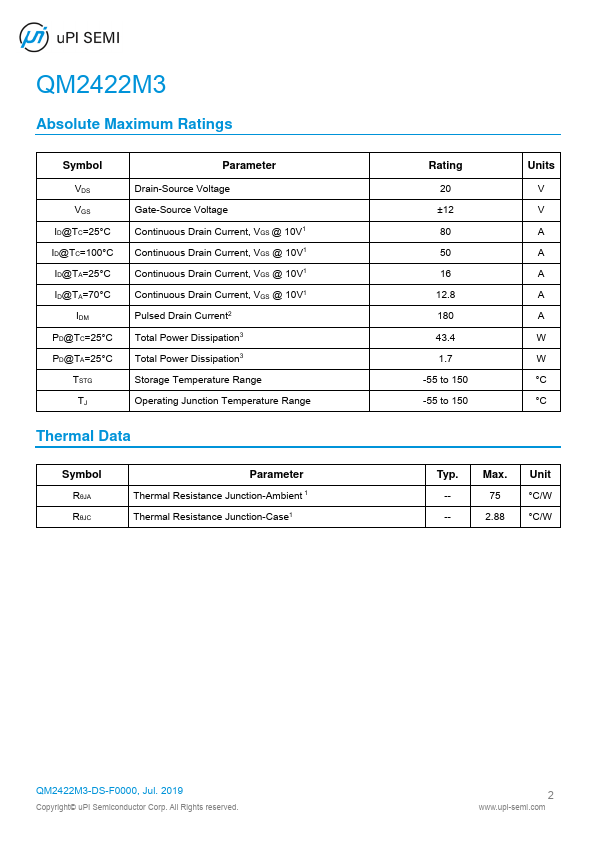

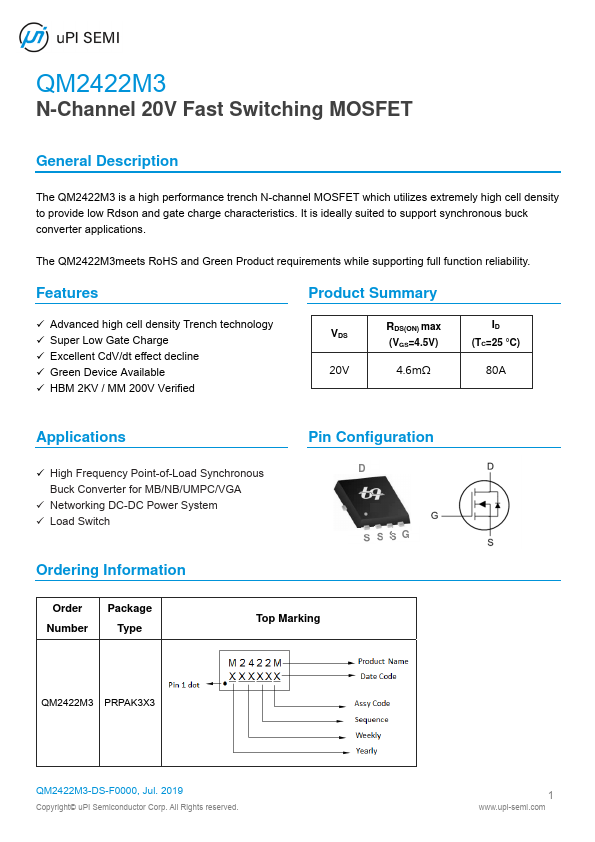

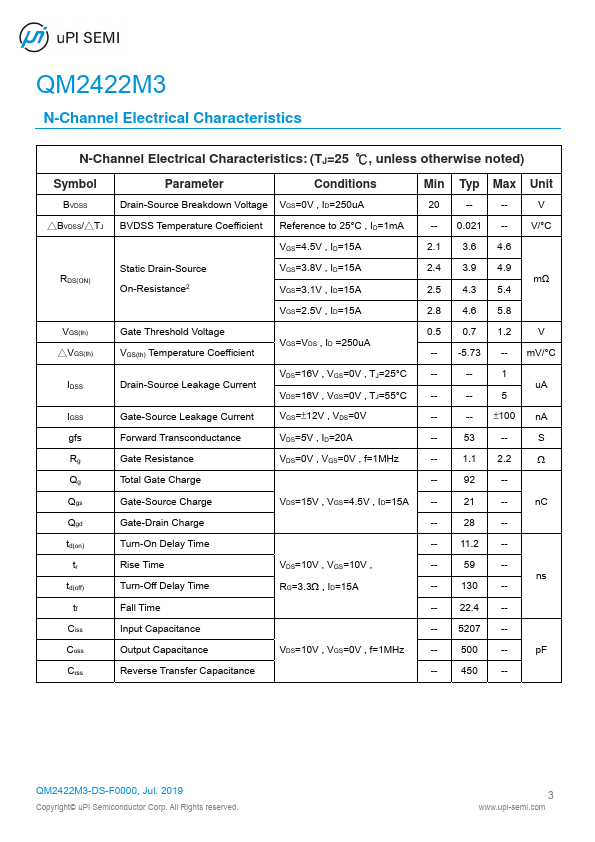

Additional preview pages of the QM2422M3 datasheet.

Product details

Description

The QM2422M3 is a high performance trench N-channel MOSFET which utilizes extremely high cell density to provide low Rdson and gate charge characteristics.

Features

Advanced high cell density Trench technology.
Super Low Gate Charge.
Excellent CdV/dt effect decline.
Green Device Available.
HBM 2KV / MM 200V Verified Product Summary VDS 20V RDS(ON) max (VGS=4.5V) 4.6mΩ ID (TC=25 °C) 80A.
