SI2318A - SOT-23-3L Plastic-Encapsulate MOSFET

📥 Download Datasheet

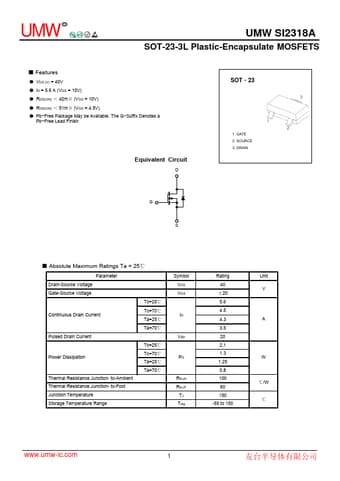

SI2318A Datasheet Preview — Preview of SI2318A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SI2318A
Manufacturer	UMW
File Size	2.01 MB
Description	SOT-23-3L Plastic-Encapsulate MOSFET
Datasheet	SI2318A-UMW.pdf

SI2318A Product details

Features

s.
VDS (V) = 40V.
ID = 5.6 A (VGS = 10V).
RDS(ON) ＜ 42mΩ (VGS = 10V).
RDS(ON) ＜ 51mΩ (VGS = 4.5V).
Pb.
Free Package May be Available. The G.
Suffix Denotes a Pb.
Free Lead Finish Equivalent Circuit D SOT.
23 1. GATE 2. SOURCE 3. DRAIN G S.
Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Tc=25℃ Continuous Drain Current Tc=70℃ Ta=25℃ Pulsed Drain Current Ta=70℃ Power Dissipation Thermal Resist.
