P2804NVG Datasheet - UNIKC

P2804NVG N&P-Channel MOSFET

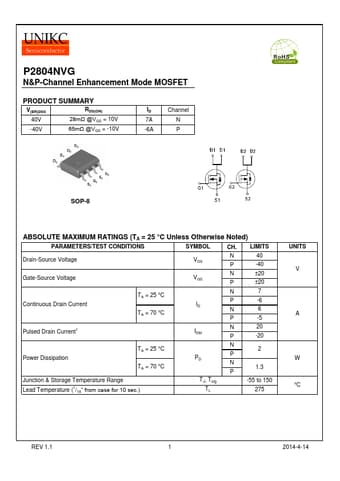

P2804NVG N&P-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS 40V RDS(ON) 28mΩ @VGS = 10V -40V 65mΩ @VGS = -10V ID Channel 7A N -6A P SOP-8 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL CH. LIMITS Drain-Source Voltage N 40 VDS P -40 Gate-Source Voltage N ±20 VGS P ±20 Continuous Drain Current TA = 25 °C TA = 70 °C N7 P -6 ID N 6 P -5 Pulsed Drain Current1 N 20 IDM P -20 Power Dissipation TA = 25 °C TA = 70 °C N 2 P P.

P2804NVG Datasheet (635.14 KB)
