LR18115

1.6X LINEAR FAN DRIVER

UNISONIC TECHNOLOGIES

LR18115 Features

* VOUT Follows 1.6 Times of VSET

* 0.3Ω Output Resistance @ 0.5A

* Over Temperature Protection

* Current Limiting Protection

* FON Pin to Turn VOUT Fully On

* ORDERING INFORMATION Ordering Number LR18115G-S08-R Package SOP-8 Packing Tape Reel

* MARKING www.unisonic

LR18115 General Description

The UTC LR18115 is a low output resistance 1.6X positive voltage linear fan driver with very low dropout voltage at up to 500mA. The UTC LR18115 consists of an error amplifier, output stage, voltage divider, over temperature protection, current limiting scheme and Fully Control logic. VOUT voltage .

LR18115 Datasheet (168.17 KB)

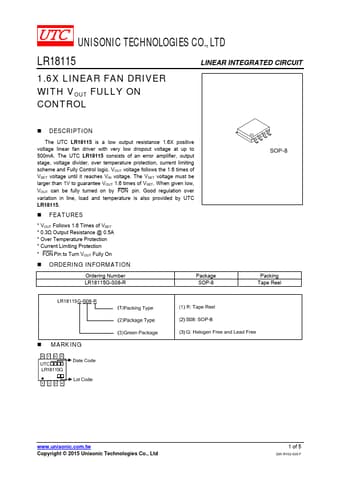

LR18115 Datasheet Preview — Preview of LR18115 PDF

Datasheet Details

Part number:

LR18115

Manufacturer:

UNISONIC TECHNOLOGIES

File Size:

168.17 KB

Description:

1.6x linear fan driver.
