LR18120

2A LOW DROPOUT REGULATOR

LR18120 Features

* VIN as Low as 1.4V and VPP Voltage 5V

* VD=320mV @ IOUT=2A, VOUT=1.2V

* Internal Over Current and Over Temperature Protection

* With Enable Pin

* Output Voltage: ±2%

* 1.0V, 1.2V, 1.5V, 1.8V and 2.5V Output Voltage Adjustable Externally Using Resistors

* When Disable VO

LR18120 General Description

The UTC LR18120 is a positive voltage regulator with high performance. It has low dropout voltage and low input voltage, besides its output voltage can be fixed at 1.0V, 1.2V, 1.5V, 1.8V, or 2.5V depending on internal feedback resistors or ADJ (not connected to the ground) with external feedback res.

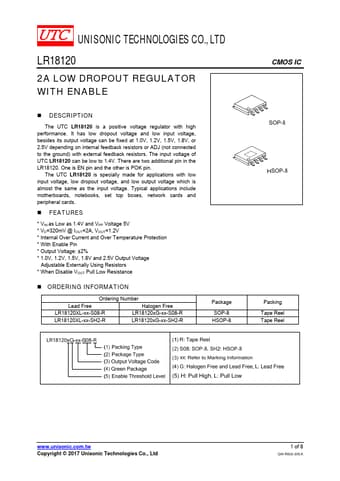

LR18120 Datasheet (373.58 KB)

Preview of LR18120 PDF

Datasheet Details

Part number:

LR18120

Manufacturer:

UTC

File Size:

373.58 KB

Description:

2a low dropout regulator.
