LR1811

1A FAST ULTRA LOW DROPOUT LINEAR REGULATOR

UTC

LR1811 Features

* Low Dropout Voltage

* The Guaranteed Output Current is 1A DC

* Output Voltage Accuracy ± 1.5%

* Over temperature Protection And Over current Protection

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free LR1811L-xx-SH2-R LR1811G-xx-SH2-R Note: xx: Output Voltag

LR1811 General Description

The UTC LR1811 operate from a +1.5V~+6V input supply as fast ultra low-dropout linear regulators. Wide output voltage range options are available. The fast response characteristic to make UTC LR1811 suitable for low voltage microprocessor application. The low quiescent current operation and low drop.

LR1811 Datasheet (234.37 KB)

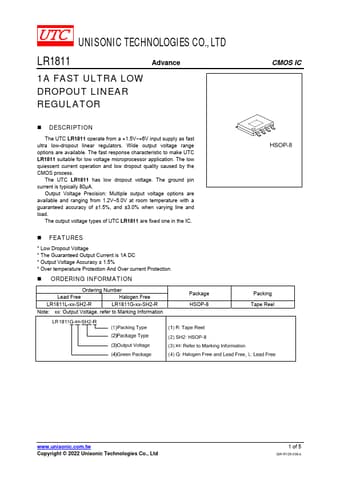

LR1811 Datasheet Preview — Preview of LR1811 PDF

Datasheet Details

Part number:

LR1811

Manufacturer:

UTC

File Size:

234.37 KB

Description:

1a fast ultra low dropout linear regulator.
