LR1805

1.0A FAST ULTRA LOW DROPOUT LINEAR REGULATOR

UTC

LR1805 Features

* Low Dropout Voltage

* The Guaranteed Output Current is 1A DC

* Output Voltage Accuracy ± 1.5%

* Over temperature Protection And Over current Protection

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free LR1805L-xx-AB5-R LR1805G-xx-AB5-R LR1805L-K06B-2020-R LR

LR1805 General Description

The UTC LR1805/LR1805AD operate from a +1.5V ~ +6V input supply as fast ultra low-dropout linear regulators. Wide output voltage range options are available. The fast response characteristic to make UTC LR1805/LR1805AD suitable for low voltage microprocessor application. The low quiescent current op.

LR1805 Datasheet (307.90 KB)

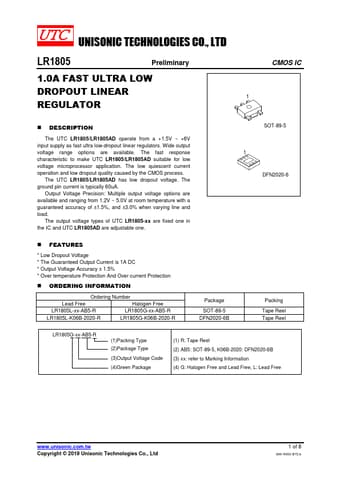

LR1805 Datasheet Preview — Preview of LR1805 PDF

Datasheet Details

Part number:

LR1805

Manufacturer:

UTC

File Size:

307.90 KB

Description:

1.0a fast ultra low dropout linear regulator.
