LR18113

1.6X LINEAR FAN DRIVER

LR18113 Features

* VOUT Follows 1.6 Times of VSET

* 0.3Ω Output Resistance @ 0.5A

* Over Temperature Protection

* Current Limiting Protection

* Enable control

* ORDERING INFORMATION Ordering Number LR18113G-S08-R Package SOP-8 Packing Tape Reel

* MARKING www.unisonic.com.tw Copyrig

LR18113 General Description

The UTC LR18113 is a low output resistance 1.6X positive voltage linear fan driver with very low dropout voltage at up to 500mA. The UTC LR18113 consists of an error amplifier, output stage, voltage divider, over temperature protection, current limiting scheme and Enable Control logic. VOUT voltage.

LR18113 Datasheet (186.04 KB)

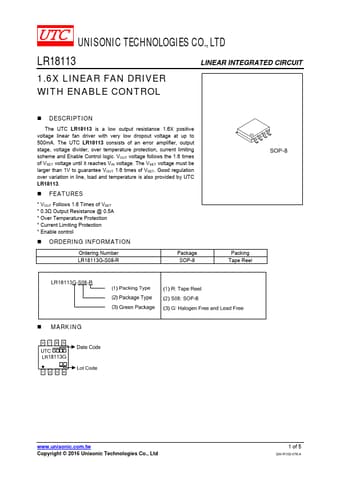

Preview of LR18113 PDF

Datasheet Details

Part number:

LR18113

Manufacturer:

UTC

File Size:

186.04 KB

Description:

1.6x linear fan driver.
