LR1812

1.0A FAST ULTRA LOW DROPOUT LINEAR REGULATOR

UTC

LR1812 Features

* Low Dropout Voltage

* The Guaranteed Output Current is 1A DC

* Output Voltage Accuracy ± 1.5%

* Over temperature Protection And Over current Protection

* Reverse Current Protection

* ORDERING INFORMATION Note: Ordering Number LR1812G-xx-AF5-R LR1812G-xx-SH2-R xx: Output

LR1812 General Description

The UTC LR1812 operate from a +1.5V ~ +6V input supply as fast ultra low-dropout linear regulators. Wide output voltage range options are available. The fast response characteristic to make UTC LR1812 suitable for low voltage microprocessor application. The low quiescent current operation and low dr.

LR1812 Datasheet (239.89 KB)

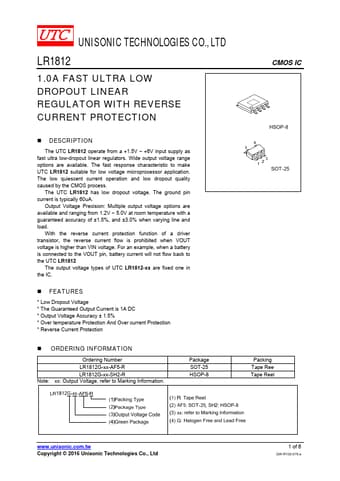

LR1812 Datasheet Preview — Preview of LR1812 PDF

Datasheet Details

Part number:

LR1812

Manufacturer:

UTC

File Size:

239.89 KB

Description:

1.0a fast ultra low dropout linear regulator.
