2N60L - N-CHANNEL POWER MOSFET

Product Overview

UTC

2N60L N-CHANNEL POWER MOSFET by UTC - Datasheet Preview — Datasheet preview – 2N60L

Datasheet Details

Part number	2N60L
Manufacturer	UTC
File Size	238.49 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	2N60L Datasheet

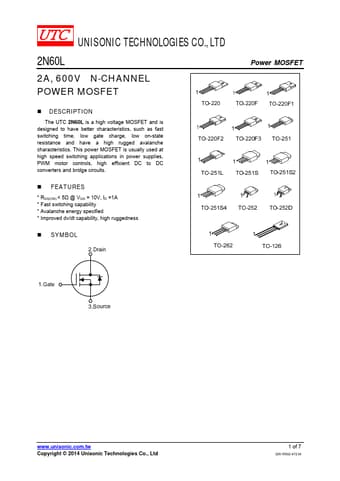

Additional preview pages of the 2N60L datasheet.

Product details

Description

1 1 Power MOSFET TO-220 The UTC 2N60L is a high voltage MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics.This power MOSFET is usually used at high speed switching applications in power supplies, PWM motor controls, high efficient DC to DC converters and bridge circuits.TO-220F 1

Features

ES 1 TO-220F1.
VDS = 600V, ID = 2A.
RDS(ON) = 5Ω@VGS = 10V.
Ultra Low gate charge (typical 9.0nC).
Low reverse transfer capacitance (CRSS = typical 5.0 pF).
Fast switching capability.
Avalanche energy specified.
Improved dv/dt capability, high ruggedness TO-251L 1.
SYMBOL TO-251 1 TO-252.
