U74CBTLV3245 Datasheet - UTC

U74CBTLV3245 - LOW-VOLTAGE OCTAL FET BUS SWITCH

The U74CBTLV3245 provides eight bits of high-speed bus switching in a standard '245 device pinout.

The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

The device is organized as one 8-bit switch.

When output enable ( OE ) is low, the 8-bit bus swit

U74CBTLV3245 Features

* 5Ω Switch Connection Between Two Ports

* Standard ‘245-Type Pinout

* Isolation Under Power-Off Conditions

* Rail-to-Rail Switching on Data I/O Ports

* IOFF Supports Partial-Power-Down Mode Operation

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74CBTLV

U74CBTLV3245-UTC.pdf

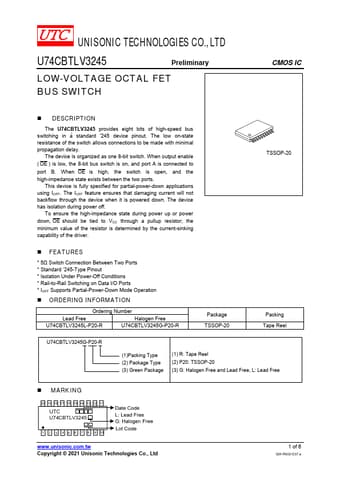

Preview of U74CBTLV3245 PDF
U74CBTLV3245 Datasheet Preview Page 2 U74CBTLV3245 Datasheet Preview Page 3

Datasheet Details

Part number:

U74CBTLV3245

Manufacturer:

UTC

File Size:

224.06 KB

Description:

Low-voltage octal fet bus switch.
