U74CBT3126 Datasheet, Switch, Unisonic Technologies

U74CBT3126 Features

  • Switch
  • 5 Ω switch connection between two ports
  • Max tpd of 0.25 ns at 5V
  • Low power consumption, ICC = 3 μA (Max.) at 5.5V
  • TTL compatible input levels CM

PDF File Details

Part number:

U74CBT3126

Manufacturer:

Unisonic Technologies

File Size:

228.17kb

Download:

📄 Datasheet

Description:

Quadruple fet bus switch. The U74CBT3126 is a quadruple line bus switch. It is composed of four 1-bit line switchs with independent separate output-enable (OE)

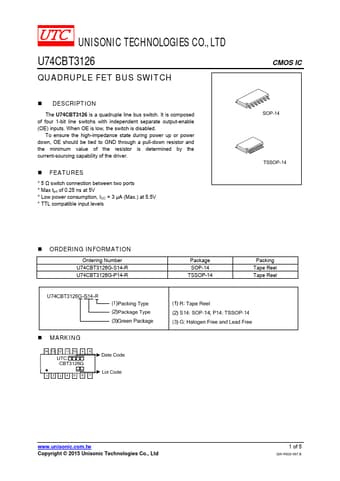

Datasheet Preview: U74CBT3126 📥 Download PDF (228.17kb)
Page 2 of U74CBT3126 Page 3 of U74CBT3126
