U74CBT3257C - 4-BIT 1-OF-2 FET MULTIPLEXER/DEMULTIPLEXER

U74CBT3257C Description

UNISONIC TECHNOLOGIES CO., LTD U74CBT3257C 4-BIT 1-OF-2 FET MULTIPLEXER/ DEMULTIPLEXER * .
The UTC U74CBT3257C is a 4-BIT 1-OF-2 FET multiplexer/ demultiplexer with Low ON-State Resistance (RON) and TTL-compatibility. FEATURES.

U74CBT3257C Features

* Undershoot Protection for Off-Isolation on A and B Ports Up to -2V
* VCC Operating Range From 4V to 5.5V
* Bidirectional Data Flow, With Near-Zero Propagation Delay
* Low ON-State Resistance (RON) Characteristics (RON =4Ω Typ. )
* Low Power Consumption ICC =3μA (Max)
* Data

📥 Download Datasheet

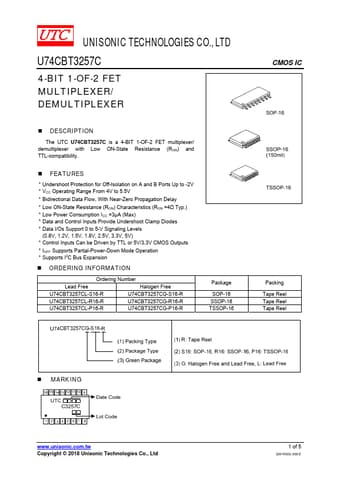

Preview of U74CBT3257C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
U74CBT3257C
Manufacturer
UTC
File Size
222.85 KB
Datasheet
U74CBT3257C-UTC.pdf
Description
4-BIT 1-OF-2 FET MULTIPLEXER/DEMULTIPLEXER
