U74CBT3257 4-BIT 1-OF-2 FET MULTIPLEXER/DEMULTIPLEXER

The U74CBT3257 is a 4-bit 1-of-2 high-speed TTL-compatible FET multiplexer/demultiplexer. The low on-state resistance of the switch allows connections to be made with minimal propagation delay. Output-enable ( OE ) and select-control (S) inputs select the appropriate B1 and B2 outputs for the A-inpu.

U74CBT3257 Features

* VCC Operating Range From 4V to 5.5V

* Bidirectional Data Flow, With minimal Propagation Delay

* Low ON-State Resistance (RON) Characteristics (RON =5Ω Typ.)

* Low Power Consumption ICC =3μA (Max)

* ORDERING INFORMATION Ordering Number U74CBT3257G-R16-R U74CBT3257G-P16-R Packa

U74CBT3257-UnisonicTechnologies.pdf

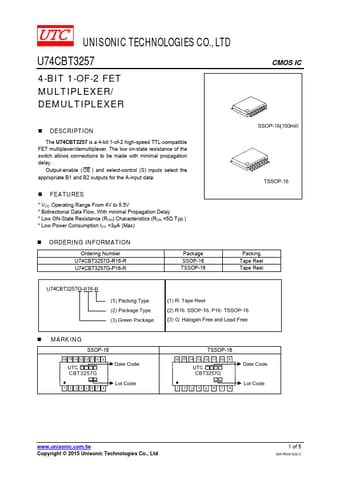

Preview of U74CBT3257 PDF
