U74CBTLV3257 Datasheet - UTC

U74CBTLV3257 - LOW-VOLTAGE DUAL 4-BIT 1-OF-2 FET MULTIPLEXER/DEMULTIPLEXER

The U74CBTLV3257 device is a 4-bit 1-of-2 high-speed FET multiplexer/demultiplexer.

The low on state resistance of the switch allows connections to be made with minimal propagation delay.

The select (S) input controls the data flow.

The FET multiplexers/demultiplexers are disabled when the output-en

U74CBTLV3257 Features

* 5Ω Switch Connection Between Two Ports

* Rail-to-Rail Switching on Data I/O Ports

* IOFF Supports Partial-Power-Down Mode Operation

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74CBTLV3257L-R16-R U74CBTLV3257G-R16-R U74CBTLV3257L-P16-R U74CBTLV3257G-P16-R P

U74CBTLV3257-UTC.pdf

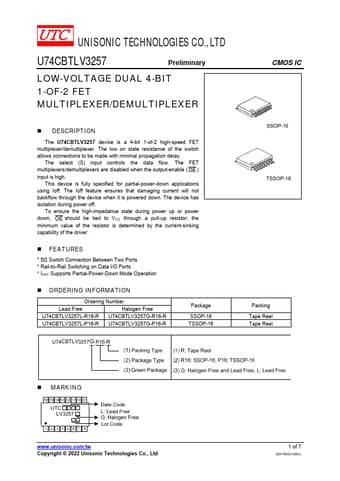

Preview of U74CBTLV3257 PDF
U74CBTLV3257 Datasheet Preview Page 2 U74CBTLV3257 Datasheet Preview Page 3

Datasheet Details

Part number:

U74CBTLV3257

Manufacturer:

UTC

File Size:

297.90 KB

Description:

Low-voltage dual 4-bit 1-of-2 fet multiplexer/demultiplexer.
