U74CBT3251C Datasheet - UTC

U74CBT3251C 1-OF-8 FET MULTIPLEXER/DEMULTIPLEXER

The U74CBT3251C is a 1-OF-8 high-speed TTL-compatible FET multiplexer / demultiplexer. The low on-state resistance of the switch allows connections to be made with minimal propagation delay. When output enable (OE) is low, the U74CBT3251C is enabled. S0, S1, and S2 select one of the B outputs for th.

U74CBT3251C Features

* VCC Operating Range From 4V to 5.5V

* Bidirectional Data Flow, With minimal Propagation Delay

* Low ON-State Resistance (RON) Characteristics (RON =4Ω Typ.)

* Low Power Consumption ICC=3μA (Max)

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74CBT3251CL-S16

U74CBT3251C Datasheet (226.58 KB)

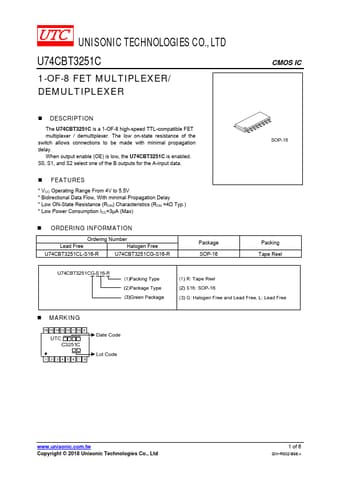

Preview of U74CBT3251C PDF
U74CBT3251C Datasheet Preview Page 2 U74CBT3251C Datasheet Preview Page 3

Datasheet Details

Part number:

U74CBT3251C

Manufacturer:

UTC

File Size:

226.58 KB

Description:

1-of-8 fet multiplexer/demultiplexer.
