U74CBTLV3251 Datasheet - UTC

U74CBTLV3251 LOW-VOLTAGE 1-OF-8 FET MULTIPLEXER/DEMULTIPLEXER

The U74CBTLV3251 device is a 1-of-8 high-speed FET multiplexer/demultiplexer. The low on-state resistance of the switch allows connections to be made with minimal propagation delay. The select inputs (S0, S1, S2) control the data flow. The FET multiplexers/demultiplexers are disabled when the output.

U74CBTLV3251 Features

* 5Ω Switch Connection Between Two Ports

* Rail-to-Rail Switching on Data I/O Ports

* IOFF Supports Partial-Power-Down Mode Operation

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74CBTLV3251L-R16-R U74CBTLV3251G-R16-R U74CBTLV3251L-P16-R U74CBTLV3251G-P16-R P

U74CBTLV3251 Datasheet (316.92 KB)

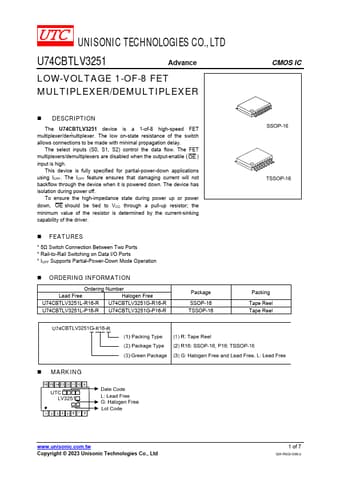

Preview of U74CBTLV3251 PDF
U74CBTLV3251 Datasheet Preview Page 2 U74CBTLV3251 Datasheet Preview Page 3

Datasheet Details

Part number:

U74CBTLV3251

Manufacturer:

UTC

File Size:

316.92 KB

Description:

Low-voltage 1-of-8 fet multiplexer/demultiplexer.
