U74CBTLV3253 Datasheet - UTC

U74CBTLV3253 - LOW-VOLTAGE DUAL 1-OF-4 FET MULTIPLEXER/DEMULTIPLEXER

The U74CBTLV3253 device is a dual 1-of-4 high-speed FET multiplexer and demultiplexer.

The low ON-state resistance of the switch allows connections to be made with minimal propagation delay.

The select (S0, S1) inputs control the data flow.

The FET multiplexers/demultiplexers are disabled when the a

U74CBTLV3253 Features

* 5Ω Switch Connection Between Two Ports

* Rail-to-Rail Switching on Data I/O Ports

* IOFF Supports Partial-Power-Down Mode Operation

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74CBTLV3253L-S16-R U74CBTLV3253G-S16-R U74CBTLV3253L-R16-R U74CBTLV3253G-R16-R

U74CBTLV3253-UTC.pdf

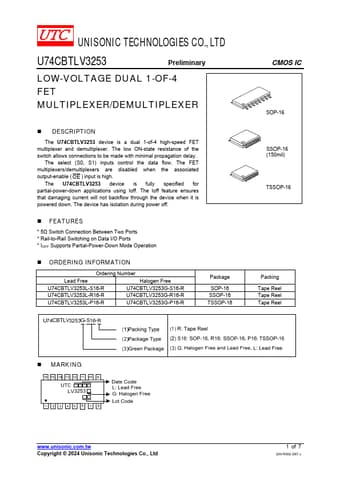

Preview of U74CBTLV3253 PDF
U74CBTLV3253 Datasheet Preview Page 2 U74CBTLV3253 Datasheet Preview Page 3

Datasheet Details

Part number:

U74CBTLV3253

Manufacturer:

UTC

File Size:

295.21 KB

Description:

Low-voltage dual 1-of-4 fet multiplexer/demultiplexer.
