UTC9015 PNP EPITAXIAL SILICON TRANSISTOR

UTC9015 Description

UTC 9015 PNP EPITAXIAL SILICON TRANSISTOR PRE-AMPLIFIER, LOW LEVEL & LOW NOISE .

UTC9015 Features

* High total power dissipation. (450mW)
* Excellent hFE linearity.
* Complementary to UTC 9014 1 TO-92 1: EMITTER ABSOLUTE MAXIMUM RATINGS ( Ta=25°C ,unless otherwise specified ) PARAMETER SYMBOL RATING Collector-base voltage VCBO -50 Collector-emitter voltage VCEO -45 Emitter

📥 Download Datasheet

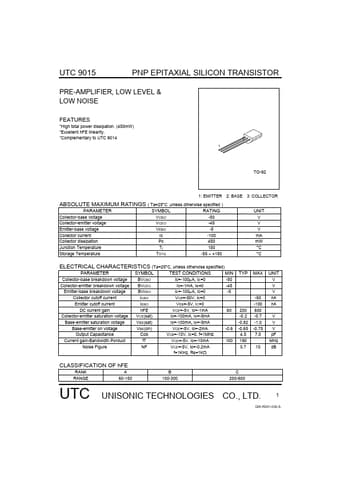

Preview of UTC9015 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UTC9015
Manufacturer
UTC
File Size
109.19 KB
Datasheet
UTC9015-UTC.pdf
Description
PNP EPITAXIAL SILICON TRANSISTOR
