CHA2090-99F - 17-24GHz Low Noise Amplifier

United Monolithic Semiconductors

📥 Download Datasheet

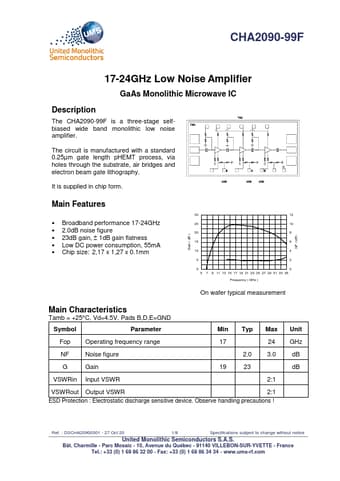

CHA2090-99F Datasheet Preview — Preview of CHA2090-99F PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CHA2090-99F
Manufacturer: United Monolithic Semiconductors
File Size: 209.03 KB
Datasheet: CHA2090-99F-UnitedMonolithicSemiconductors.pdf
Description: 17-24GHz Low Noise Amplifier

CHA2090-99F Product details

Description

The CHA2090-99F is a three-stage selfbiased wide band monolithic low noise amplifier.

Features

Broadband performance 17-24GHz.
2.0dB noise figure.
23dB gain,  1dB gain flatness.
Low DC power consumption, 55mA.
Chip size: 2,17 x 1,27 x 0.1mm 30 12 25 10 20 8 15 6 10 4 5 2 0 0 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 Frequency ( GHz ) On wafer typical measurement Main Characteristics Tamb = +25°C, Vd=4.5V, Pads B,D,E=GND Symbol Parameter Min Typ Max Fop Operating frequency range 17 24 NF Noise figure 2.0 3.0 G Gain 19 23 VSWRin I.
