CHA2093RBF Datasheet - United Monolithic Semiconductors

20-30GHz Low Noise Amplifier

CHA2093RBF Features

* Broad band performance: 20-30GHz

* Gain = 14dB (typical)

* Noise Figure 3.0dB (typical)

* Return loss < -7dB

* Low DC consumption < 50mA

* SMD leadless package

* Dimensions: 5.08 x 5.08 x 0.97 mm3 "Please note that PIN 1 is located in the lower left corner of the packa

CHA2093RBF General Description

The monolithic microwave IC (MMIC) in the package is a two-stage wide band monolithic low noise amplifier. The circuit is manufactured with a standard PHEMT process : 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography. It is supplied in a new SMD lead.

CHA2093RBF Datasheet (183.48 KB)

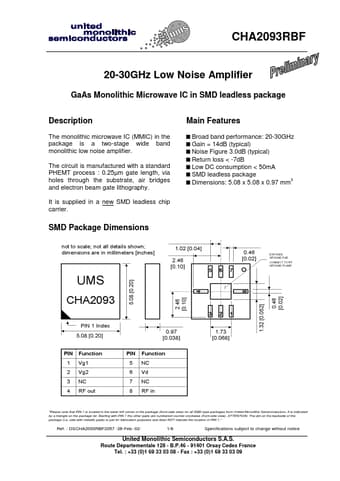

CHA2093RBF Datasheet Preview — Preview of CHA2093RBF PDF

Datasheet Details

Part number:

CHA2093RBF

Manufacturer:

United Monolithic Semiconductors

File Size:

183.48 KB

Description:

20-30ghz low noise amplifier.
