CHA2093 Datasheet - United Monolithic Semiconductors

20-30GHz Low Noise Amplifier

CHA2093 Features

* ¦ Broad band performance 20-30GHz ¦ 2.2dB noise figure, 20-30GHz ¦ 15dB gain, ± 0.5dB gain flatness ¦ Low DC power consumption, 50mA ¦ 20dBm 3rd order intercept point ¦ Chip size : 1.67 x 1.03 x 0.1mm Main Characteristics Tamb = +25°C 20 10 18 9 16 8 14 7 12 6 10 5 84 63 42 21 00 10 15 20 25 30 35

CHA2093 General Description

The CHA2093 is a two-stage wide band monolithic low noise amplifier. The circuit is manufactured with a standard HEMT process : 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography. It is supplied in chip form. IN Vd 50 25 OUT Vg 1 Vg 2 Gain ( dB .

CHA2093 Datasheet (92.60 KB)

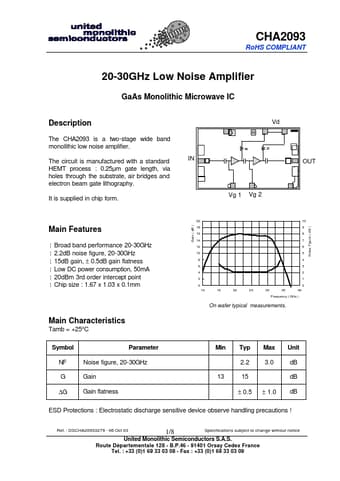

CHA2093 Datasheet Preview — Preview of CHA2093 PDF

Datasheet Details

Part number:

CHA2093

Manufacturer:

United Monolithic Semiconductors

File Size:

92.60 KB

Description:

20-30ghz low noise amplifier.
