CHA2092B Datasheet - United Monolithic Semiconductors

18-32GHz Low Noise Amplifier

CHA2092B Features

* ¦ Broadband performances : 18-32GHz ¦ 2.5dB Noise Figure ¦ 10dBm output power ( -1dB gain comp. ) ¦ 22dB ±1.0dB gain ¦ Low DC power consumption, 60mA @ 3.5V ¦ Chip size : 1.67 X 0.97 X 0.10 mm Vds IN Vgs1 8831 OUT Vgs2,3 Gain & NF ( dB ) 30 25 20 15 10 5 0 15 17 19 21 23 25 27 29 31 33 35 Fre

CHA2092B General Description

The CHA2092 is a high gain broadband three-stage monolithic low noise amplifier. It is designed for a wide range of applications, from military to commercial communication systems. The backside of the chip is both RF and DC ground. This helps simplify the assembly process. Self biasing technique is .

CHA2092B Datasheet (71.21 KB)

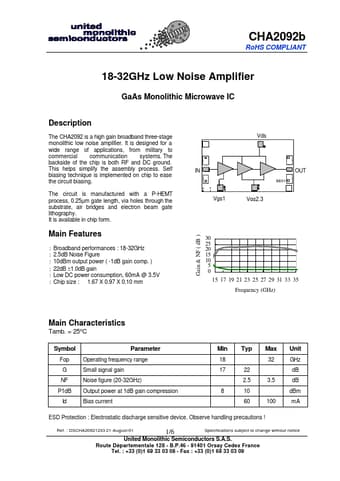

CHA2092B Datasheet Preview — Preview of CHA2092B PDF

Datasheet Details

Part number:

CHA2092B

Manufacturer:

United Monolithic Semiconductors

File Size:

71.21 KB

Description:

18-32ghz low noise amplifier.
