CHA2157-99F Datasheet - United Monolithic Semiconductors

CHA2157-99F Medium Power Amplifier

The CHA2157-99F is a two stage low noise and medium power amplifier. It is designed for a wide range of applications, from military to commercial communication systems. The backside of the chip is both RF and DC grounded. This helps simplify the assembly process. The circuit is manufactured with a .

CHA2157-99F Features

* 3.5 dB noise figure

* 10 dB  1dB gain

* 15 dBm output power @ -1dB gain comp.

* DC power consumption, 80mA @ 3.3V

* Chip size: 1.71 x 1.04 x 0.10 mm Gain & Rloss (dB) 15 10 5 0 -5 -10 -15 -20 55 Gain S11 56 57 58 Frequency (GHz) S22 59 60 Typical on wafer measurement Mai

CHA2157-99F-UnitedMonolithicSemiconductors.pdf

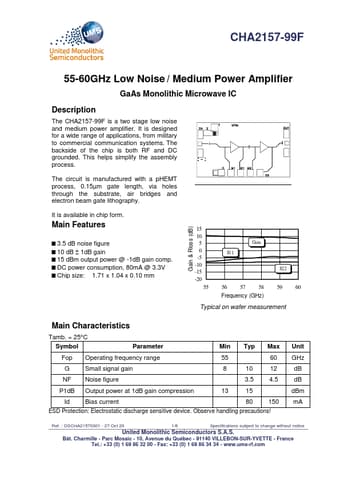

Preview of CHA2157-99F PDF
CHA2157-99F Datasheet Preview Page 2 CHA2157-99F Datasheet Preview Page 3

Datasheet Details

Part number:

CHA2157-99F

Manufacturer:

United Monolithic Semiconductors

File Size:

393.00 KB

Description:

Medium power amplifier.
