CHA2159-99F Datasheet - United Monolithic Semiconductors

Low Noise / Medium Power Amplifier

CHA2159-99F Features

* 4.0 dB noise figure

* 20 dB gain

* 14 dBm output power (-1dB gain comp.)

* DC power consumption, 115mA @ 3.5V

* Chip size: 2.35 x 1.11 x 0.10 mm Gain & RLosses (dB) 22 20 18 16 14 12 10 8 6 4 2 0 -2 -4 -6 -8 -10 -12 -14 55 dBS11 dBS22 dBS21 NF Typ. 60 65 Frequency (GHz)

CHA2159-99F General Description

The CHA2159 is a four - stage low noise and medium power amplifier. It is designed for a wide range of applications, from military to commercial communication systems. The backside of the chip is both RF and DC grounded. This simplifies the assembly process. The circuit is manufactured with a pHEMT .

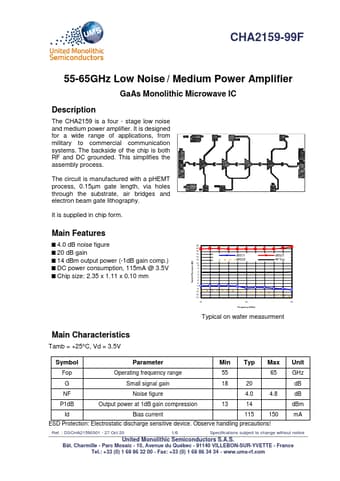

CHA2159-99F Datasheet (259.96 KB)

Preview of CHA2159-99F PDF

Datasheet Details

Part number:

CHA2159-99F

Manufacturer:

United Monolithic Semiconductors

File Size:

259.96 KB

Description:

Low noise / medium power amplifier.
