CHA2159 Datasheet, Amplifier, United Monolithic Semiconductors

CHA2159 Features

  • Amplifier
  • 4.0 dB noise figure
  • 20 dB gain
  • 14 dBm output power (-1dB gain comp.)
  • DC power consumption, 115mA @ 3.5V
  • Chip size: 2.35 x 1.11 x 0.10 m

PDF File Details

Part number:

CHA2159

Manufacturer:

United Monolithic Semiconductors

File Size:

126.84kb

Download:

📄 Datasheet

Description:

55-65ghz low noise / medium power amplifier. The CHA2159 is a four - stage low noise and medium power amplifier. It is designed for a wide range of applications, from military to

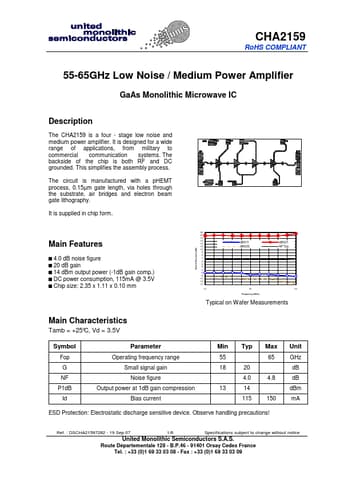

Datasheet Preview: CHA2159 📥 Download PDF (126.84kb)
Page 2 of CHA2159 Page 3 of CHA2159

CHA2159 Application

  • Applications from military to commercial communication systems. The backside of the chip is both RF and DC grounded. This simplifies the assembly p
