CHA2110-QDG Datasheet, Microwave, United Monolithic Semiconductors

CHA2110-QDG Features

  • Microwave
  • Broadband performances: 7-12GHz
  • Linear gain: 19dB
  • Noise Figure: 1.2dB
  • Output power @ 1dB comp.: 10dBm
  • DC bias: Vd=4V @ Id=45mA

PDF File Details

Part number:

CHA2110-QDG

Manufacturer:

United Monolithic Semiconductors

File Size:

671.05kb

Download:

📄 Datasheet

Description:

Gaas monolithic microwave. The CHA2110-QDG is a monolithic two-stage wide band, self-biased Low Noise Amplifier. It is designed for a wide range of applications

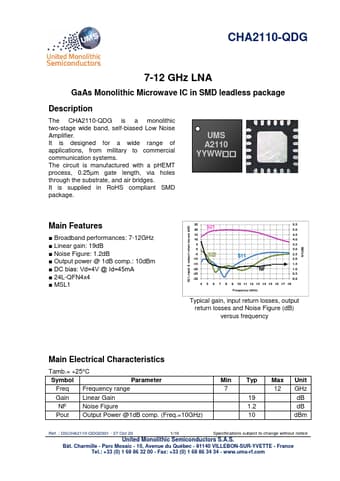

Datasheet Preview: CHA2110-QDG 📥 Download PDF (671.05kb)
Page 2 of CHA2110-QDG Page 3 of CHA2110-QDG

CHA2110-QDG Application

  • Applications from military to commercial communication systems. The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes thr
