CHA3660-QQG Datasheet, Amplifier, United Monolithic Semiconductors

CHA3660-QQG Features

  • Amplifier
  • Broadband performances: 21-27.5GHz
  • 19dBm Pout at 1dB compression
  • 25dB gain
  • 30dBm OTOI
  • DC bias: Vd= 4.0V, Id= 180mA
  • 16L-QFN4x4

PDF File Details

Part number:

CHA3660-QQG

Manufacturer:

United Monolithic Semiconductors

File Size:

643.61kb

Download:

📄 Datasheet

Description:

21-27.5ghz medium power amplifier. The CHA3660-QQG is a 3 stage monolithic medium power amplifier, which produces 25dB gain for 19dBm output power. It is designed for a

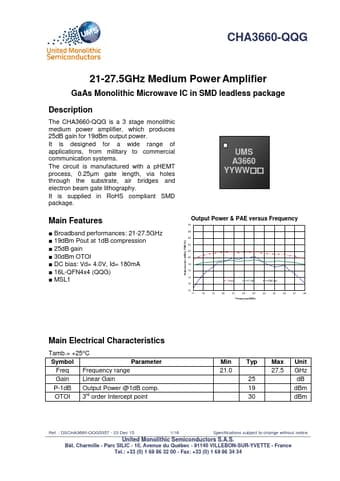

Datasheet Preview: CHA3660-QQG 📥 Download PDF (643.61kb)
Page 2 of CHA3660-QQG Page 3 of CHA3660-QQG

CHA3660-QQG Application

  • Applications from military to commercial communication systems. The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes thr
