CHA3665-QAG - 5-21GHz Driver Amplifier

United Monolithic Semiconductors

📥 Download Datasheet

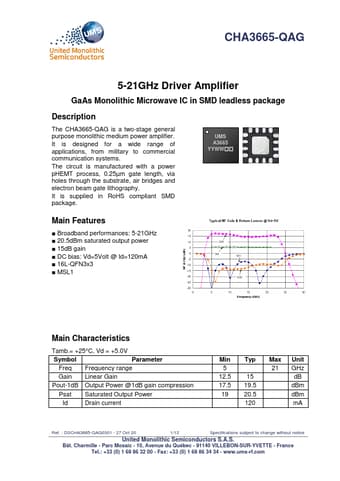

CHA3665-QAG Datasheet Preview — Preview of CHA3665-QAG PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CHA3665-QAG
Manufacturer: United Monolithic Semiconductors
File Size: 749.21 KB
Datasheet: CHA3665-QAG-UnitedMonolithicSemiconductors.pdf
Description: 5-21GHz Driver Amplifier

CHA3665-QAG Product details

Description

The CHA3665-QAG is a two-stage general purpose monolithic medium power amplifier.

Features

Broadband performances: 5-21GHz.
20.5dBm saturated output power.
15dB gain.
DC bias: Vd=5Volt @ Id=120mA.
16L-QFN3x3.
MSL1 Main Characteristics Tamb. = +25°C, Vd = +5.0V Symbol Parameter Freq Frequency range Gain Linear Gain Pout-1dB Output Power @1dB gain compression Psat Saturated Output Power Id Drain current Min Typ Max Unit 5 21 GHz 12.5 15 dB 17.5 19.5 dBm 19 20.5 dBm 120 mA Ref. : DSCHA3665-QAG0301 - 27 Oct 20 1/12 Specifications subje.
