CHA3689-99F - Low Noise Amplifier

United Monolithic Semiconductors

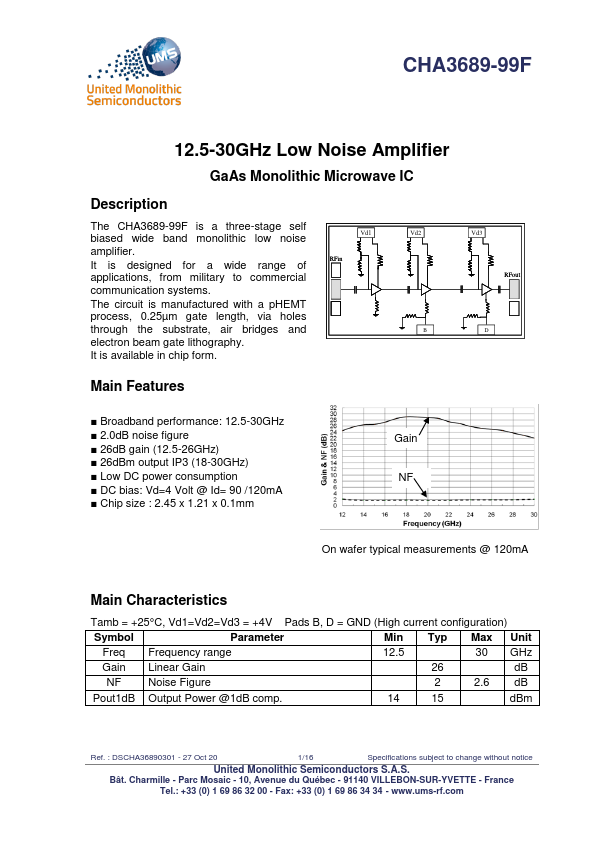

CHA3689-99F Datasheet Preview — Preview of CHA3689-99F PDF

Datasheet Details

Part number	CHA3689-99F
Manufacturer	United Monolithic Semiconductors
File Size	865.72 KB
Description	Low Noise Amplifier
Datasheet	CHA3689-99F-UnitedMonolithicSemiconductors.pdf

CHA3689-99F Product details

Description

The CHA3689-99F is a three-stage self biased wide band monolithic low noise Vd1 Vd2 amplifier.RFin It is designed for a wide range of applications, from military to commercial communication systems.The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and B electron beam gate lithography.It is available in chip form.Vd3 RFout D Main

Features

Broadband performance: 12.5-30GHz.
2.0dB noise figure.
26dB gain (12.5-26GHz).
26dBm output IP3 (18-30GHz).
Low DC power consumption.
DC bias: Vd=4 Volt @ Id= 90 /120mA.
Chip size : 2.45 x 1.21 x 0.1mm Gain NF On wafer typical measurements @ 120mA Main Characteristics Tamb = +25°C, Vd1=Vd2=Vd3 = +4V Pads B, D = GND (High current configuration) Symbol Parameter Min Typ Max Unit Freq Frequency range 12.5 30 GHz Gain Linear Gain 26 dB NF Noise Figu.
