CHS5100-99F - Reflective SPDT Switch

United Monolithic Semiconductors

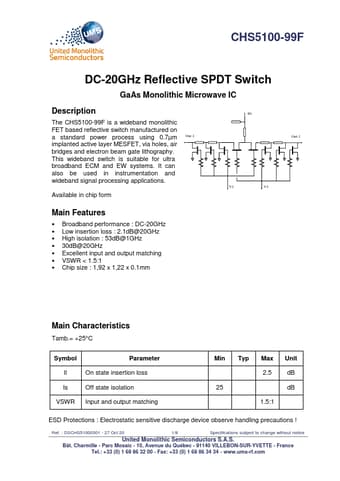

CHS5100-99F Datasheet Preview — Preview of CHS5100-99F PDF

Datasheet Details

Part number	CHS5100-99F
Manufacturer	United Monolithic Semiconductors
File Size	322.39 KB
Description	Reflective SPDT Switch
Datasheet	CHS5100-99F-UnitedMonolithicSemiconductors.pdf

CHS5100-99F Product details

Description

The CHS5100-99F is a wideband monolithic FET based reflective switch manufactured on a standard power process using 0.7µm Out 2 implanted active layer MESFET, via holes, air bridges and electron beam gate lithography.

Features

Broadband performance : DC-20GHz.
Low insertion loss : 2.1dB@20GHz.
High isolation : 53dB@1GHz.
30dB@20GHz.
Excellent input and output matching.
VSWR < 1.5:1.
Chip size : 1,92 x 1,22 x 0.1mm Main Characteristics Tamb. = +25°C Symbol Parameter Il On state insertion loss Is Off state isolation VSWR Input and output matching Min Typ Max Unit 2.5 dB 25 dB 1.5:1 ESD Protections : Electrostatic sensitive discharge device observe handling precautions !.
