CHS5104-99F

DC-4GHz reflective SPDT

CHS5104-99F Features

* Broadband performance: DC-4GHz

* Low insertion loss: 0.5dB@4GHz

* Isolation: 38dB@2GHz 30dB@4GHz

* Return loss: 20dB@2GHz 13dB@4GHz

* Input P1dB: 30dBm

* Chip size: 0.8x0.8x0.07mm3 Main Electrical Characteristics Tamb.= +25°C Symbol Parameter Freq Frequency range IL

CHS5104-99F General Description

The CHS5104-99F is a monolithic FET based reflective switch. It is designed for a wide range of applications, from defense to commercial communication systems. The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate li.

CHS5104-99F Datasheet (538.00 KB)

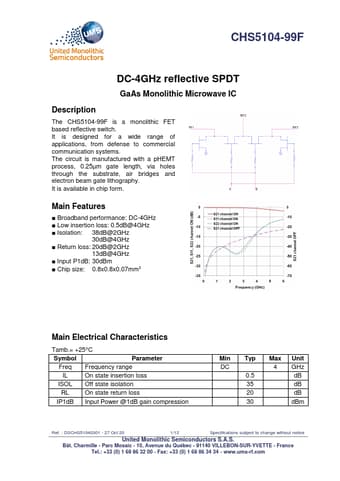

Preview of CHS5104-99F PDF
